Water Treatment Do Ec Orp pH Water Analyzer

Water Treatment DO EC ORP pH Water quality analysis instrumentProduct Introduction Apure A10 series PH/ORP controller is an intelligent on-line chemical analysis instrument. It can continuously monitor data and realize remote transmission monitoring and recording. It can also connect to the RS485 interface. Y

Featured Products

Water Treatment DO EC ORP pH Water quality analysis instrument

Water Treatment Do Ec Orp pH Water Quality Analysis Instrument

Product Introduction

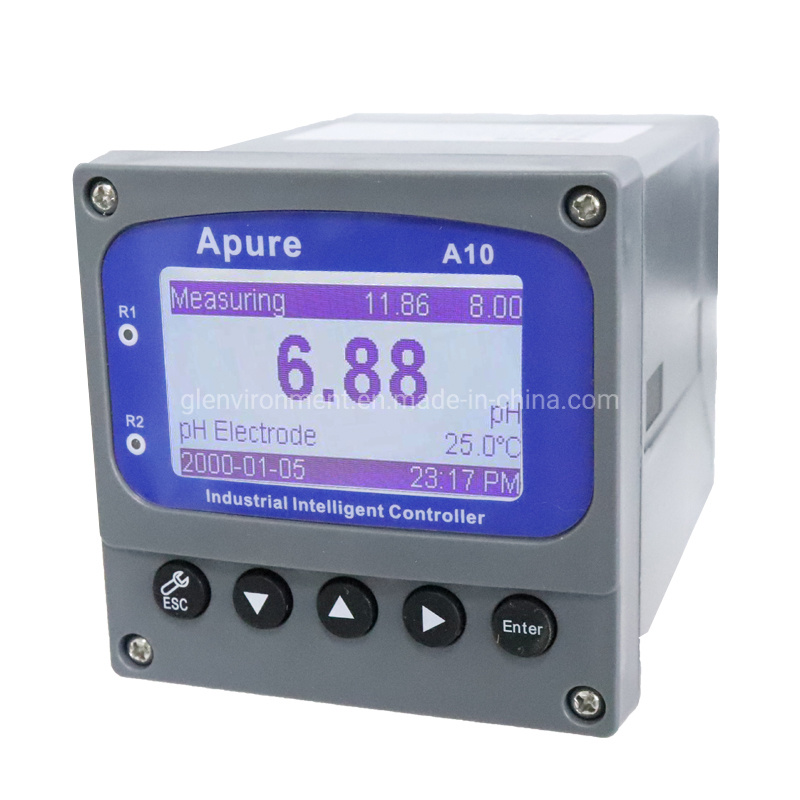

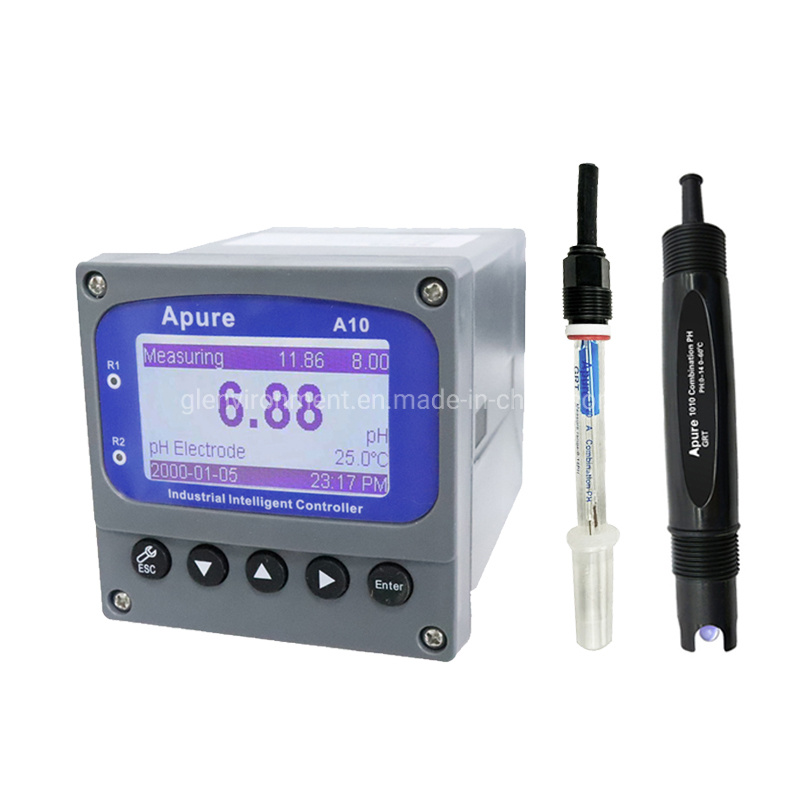

Apure A10 series PH/ORP controller is an intelligent on-line chemical analysis instrument. It can continuously monitor data and realize remote transmission monitoring and recording. It can also connect to the RS485 interface. You can also easily connect to a computer using the 4-20ma protocol.


High-definition screen

4-20mA or RS485 signal.
2.4 inch screen display.
Switch in English and Chinese.
High-low alarm relays.


Measurement reference isolation

Increase the input signal insulation, to eliminate the signal interference.
Automatic programmable compensation standard.




Technical Parameter
Sensor input range
0.00 ~ 14.00 PH
Accuracy
0.02PH
Stability
± 0.1PH
Display
Back light 3.5-bit LCD
Temperature comp
Automatic programmable compensation standard Temperature: 0-60
Electrode
0.05cm-1 sanitary grade electrode,1/2" thread
Cable length
10m or others(5~30m)
Current output
Isolated 4-20mA current output Environmental conditions:
Humidity
≤ 85%RH
Control output
Relay control output, Hi,Lo,on,off
Power supply
AC 220V ±10% 50HZ and DC 24V
Environmental conditions
temperature : 0~50°c; Humidity : ≤85%RH
Dimensions
96× 96 × 130mm (height × Width × Depth)
Panel cut-out
92X92mm
Installation
Cut-out Fit-In


Water Treatment Do Ec Orp pH Water Quality Analysis Instrument
Water Treatment Do Ec Orp pH Water Quality Analysis Instrument


Water Treatment Do Ec Orp pH Water Quality Analysis Instrument

Certificate


Water Treatment Do Ec Orp pH Water Quality Analysis Instrument


Company Profile


Water Treatment Do Ec Orp pH Water Quality Analysis Instrument


Packing & Shipping


Water Treatment Do Ec Orp pH Water Quality Analysis Instrument
Water Treatment Do Ec Orp pH Water Quality Analysis Instrument


FAQ

Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
