Product Name: Crops Study Analysis System
Model: TPKZ-1




Characteristics
  1. Scanner:A3(max resolution 1600dpi*1600dpi), Qinghua Purple light M1 color scanner.
  2. Analysis speed:10ears,35sections,1000kernels analyzed once.
  3. Data storage: images, automatic generation of report and export in Excel, supplement stored is available.
  4. Color analysis:RGB color display, With comparative analysis of sample color,shape.
  5. Moisture test:equipped with moisture meter.
  6. Image analysis:arbitrarily zoom in or zoom out,partial observation.
  7. Weight conversion: equipped with electric balance,weight data can be imported and exported through RS232. Then the system convert the weight to 1000/100 grain weight.
  8. Embryo tips mark: the system is able to automatic recognize and mart the embryo tips of the corn,and record its quantity.
  9. Precision error: 1500-4000kernels/min ,automatic counting error: ±0.5%,and reach 100% correct through manual correction; Kernels size error:±0.3%; 1000grain weight analysis error: ±0.5%.

Analysis function

TypeFunctionPicture
Intact Ear AnalysisTest ear row, ear length, ear width, barren ear tip length,ear angle, ear color, kernels quantity, kernels thicknessCrops Study Analysis System/Centre for Crop Systems Analysis

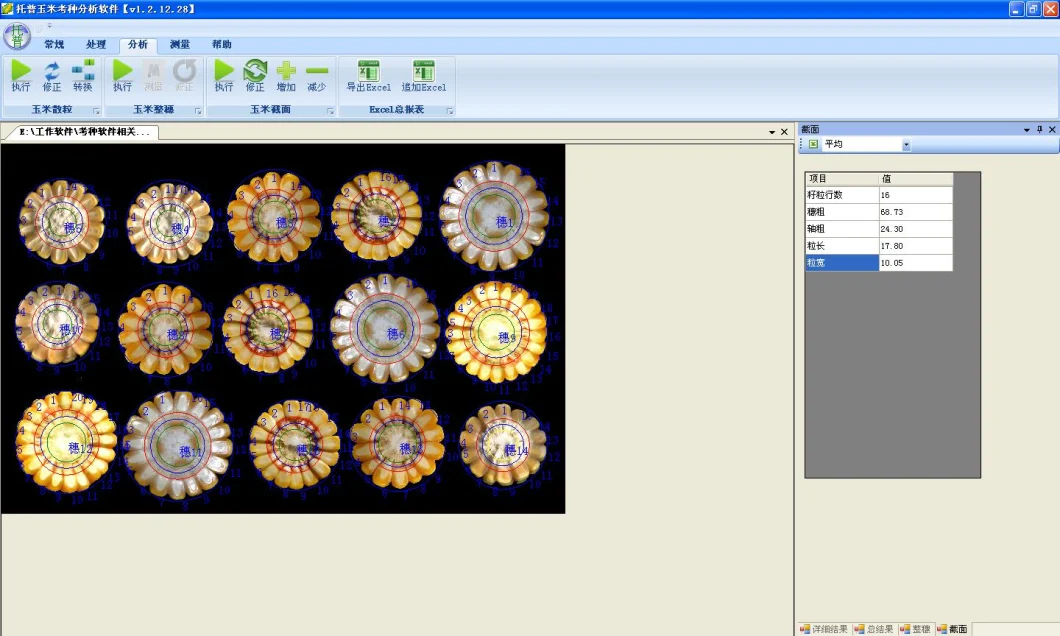

Section AnalysisTest kernels per row, Axis diameter, kernel length, kernel width.At least 15 sections can be detected each time.Crops Study Analysis System/Centre for Crop Systems Analysis

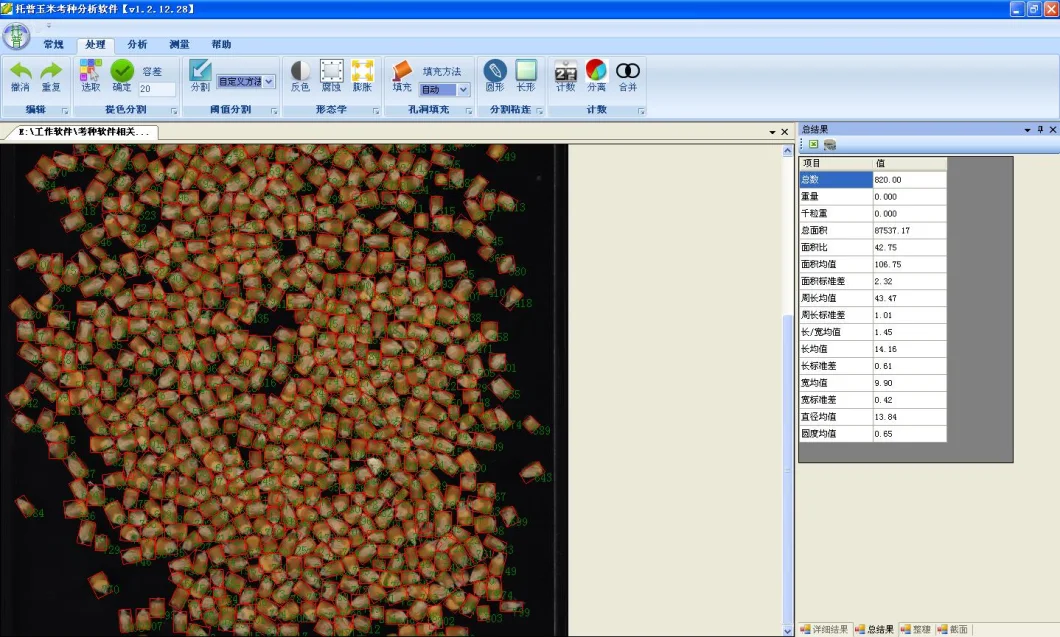

Kernels AnalysisTest kernels quantity, unit weight,kernel size (length, width, aspect ratio,
perimeter , area diameter) moisture,color,quantity of embryo tips and etc.
Crops Study Analysis System/Centre for Crop Systems Analysis
