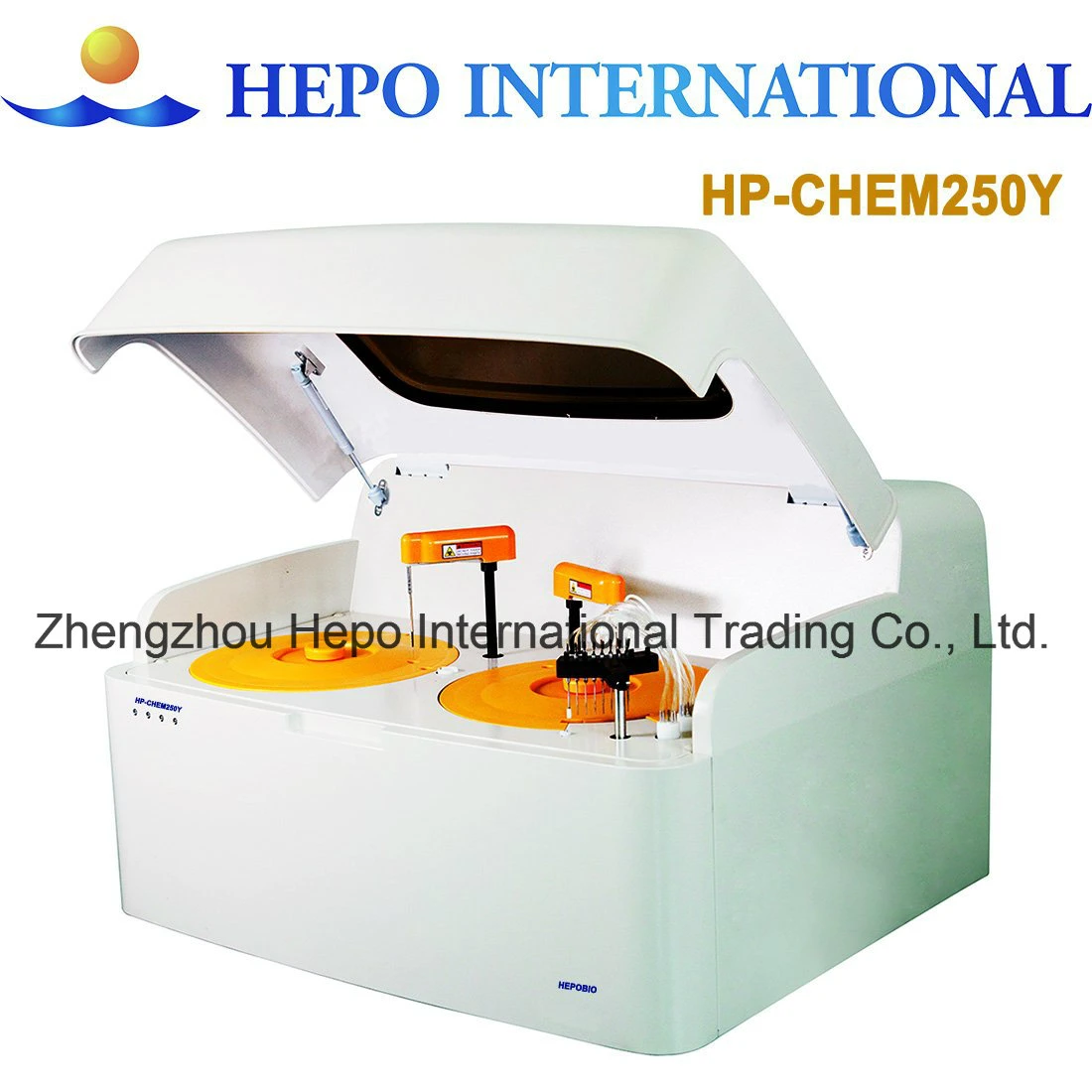

Auto Biochemistry Analyzer (250tests/hour)
HP-CHEM250Y Auto Biochemistry Analyzer is our new designed laboratory popular chemistry analyzer.Perfect designing with table top style,make it much fashion in your lab.And it can be produced by OEM style.
.
Choosing Reasons:1,Bench top & Floor Style are available;2,Bar cod scanning system and ISE(K,Na,Cl,Ca,PH) function are available;3,More wavelength filters are available;4,OEM is available;5,Original Biochemistry Reagents are available;6,Computer,External Printer,DI Water Purification Machine,UPS back up power are available for set along with analyzer;7,Easy buying and operation,no need special installation,site installation service is available.
Main Advantage:
- New concept and more friendly software.
- New techniques and spare parts used for much better quality and function.
- Automatic washing station for both sample and reagent probe.
- Liquid level detection and collision protection for both sample and reagent probe
- Reliable cooling system for reagent chamber.
- Powerful reaction cuvette washing system.
- ISE module and barcode scanner(option).
- Lower waste and more environment friendly.
- New concept test control system available(on request).
| Model | HP-CHEM250Y | |
| Assay Model | Random Access with direct reading syatem | |
| Method | End point,Kinetic,Fixed time,Immunoturbidimetry,1-2 reagent,Multistandard,reagent/serum blank,etc | |
| Assay Item | 40 assay | |
| ISE mould (Na+ ,K+, Cl- /LI*) available on request | ||
| Throughput | 1Reagent | 257 tests/hour |
| 2Reagent | 150 tests/hour | |
| With ISE | +120 tests/hour | |
| Test Menu | T.BILI r-GT/GGT CHO Ca APOB-1/B CHE | |
| D.BILI ALP/AKP TG CL APOB CREA | ||
| TP UREA CK P CK-MB Mg | ||
| ALB CREA LDH C ASO AFU | ||
| Lactic Acid ALT/GPT UA a-HBDH CO2 FMN | ||
| LP(a) AST/GOT GLU AMY LDL-C HDL-C | ||
| CHE LA TBA ADA HA-CRP PA | ||
| FE Cu Zn C3 C4 lgG | ||
| IgM lgA and drug ,toxicity ,etc | ||
| Sample Position | 60 | |
| Including standard,control and stat,either serum cup primary tube available | ||
| Sample Volume | 1~100ul,0.1ul/step | |
| Reagent Position | 40 or 80 (optional) | |
| Reagent Volume | R1:1~400ul,1ul/step ,R2:1~400ul,1ul/step | |
| Reagent/Sample Probe | With liquid level sensor,collision sensor,teflon coating and automatic washing station | |
| Reaction Time | 0~999 seconds | |
| Cuvette | High quality uv-transmitted plastic cuvette,Quartz glass cuvettes | |
| Cuvette Washing | 8 channels automatic washing system for reaction cuvettes | |
| Probe And Mixer Washing | Independent washing station for each sample/reagent probe and mixer | |
| Alarm | Automatic alarm for malfunction(eg:collision,reagent/sample insufficiency,full waste container,etc) | |
| Callibration | Linear,Non-linear,Multi standard ,K factor | |
| Sample Dilution/Retest | Sample can be diluted and retested if results are out of range or sample is insufficient,Also with calibrator auto diluting function | |
| Wavelength | 340~810nm | |
| Light Source | Halogen lamp | |
| Absorbance Resoulution | 0.0001A | |
| Absorbance Accuracy | ±0.0003A(0-2.5A) | |
| Repeatability (CV%) | ≤2 % | |
| Quality Control | Levy Jennings quality control program at 3 levels | |
| Bar Code | Optional | |
| Printer | Multiple report formats available | |
| Test Control Function | New card control system available on request | |
| Language | English,French,Spanish,German,Russia.etc | |
| System | Windows XP or Vista ,Windows 7 | |
| Power Supply | 220V/50HZ or 110V/60HZ (optional) | |
| Dimension | 85*72*53(cm) | |
| Weight | 85kg | |
Note:One year quality guarantee and 24 hours phone service for all the products supplied.
