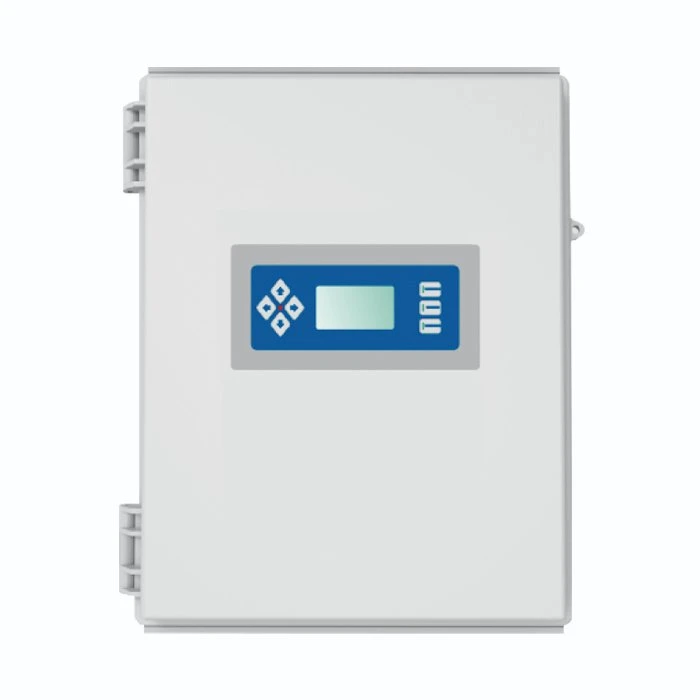

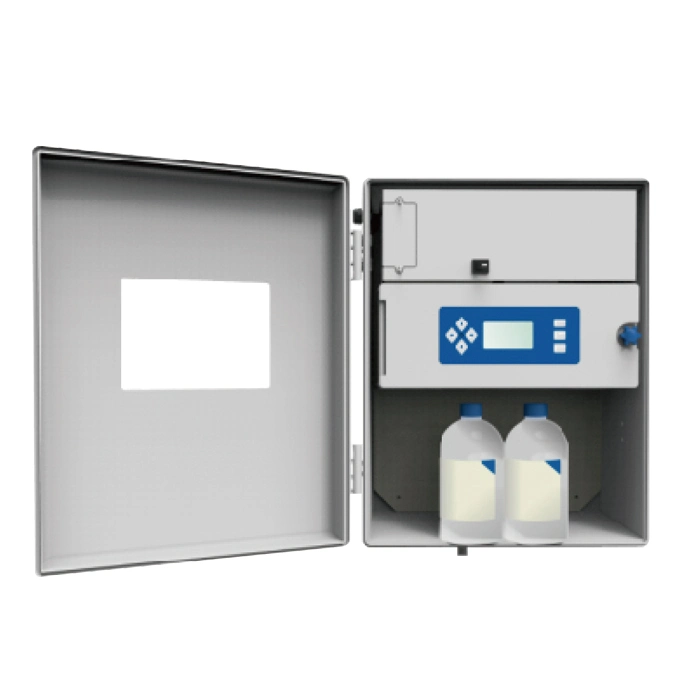

T9257 Colorimetric Total Chlorine Online Analyzer


T9257 Colorimetric Total Chlorine Online Analyzer


Overview:
DPD colorimetric method is used to detect the concentration of total chlorine. It is a precise, cost-effective and low maintenance instrument, which is suitable for the measurement of total chlorine in the process of chlorination and disinfection and the monitoring of total chlorine concentration in drinking water pipe network. Continuous operation of 30 days of reagent consumption, unattended operation, low operation and maintenance costs.

Features:
DPD standard colorimetric method;
Reagents need not be replaced within 30 days of continuous operation, with simple operation and low maintenance cost;
With automatic cleaning function, reduce maintenance;
MODBUS RS485output;
With data storage function;
With reagent residue alarm function;
Measurement mode: continuous measurement mode, periodic measurement mode (adjustable measurement cycle).

Application:
Suitable for total chlorine measurement of tap water, circulating cooling water, sewage and other chlorination disinfection process and total chlorine measurement of tap water network.

Technical Specifications
Measuring Range0~5ppm CI2
Accuracy±5% of reading or ±0.03ppm Cl2,whichever is greater.
Limit of detection0.03mg/L
Display70mm×48 mm LCD display
CalibrationUse the default calibration curve
Operating conditionSample flow required:200-400mL/min
Sample inlet pressure:0.1~5bar
Sample temperature:5~40ºC
Power Supply220-230VAC,50/60Hz
Output4-20mA
CommunicationMODBUS RS485
Relay2 sets of relays, concentration alarm can be set
Storage Temperature-40~60ºC
Storage HumidityHumidity:10-90%,non-condensing
Dimensions350mm*186mm*460mm(Length*Width*Height)
Weight9KG
InstallationWall mounted






FAQ:
1.Are you trading company or manufacturer ?
We are factory.


2.How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

3.Does your price is competitive?
We make sure to offer you the best quality with competitive price.

4.What is your terms of payment?
We accept 100% T/T in advance,balance before shipment.
 .
5.When I receive it after pay?
Normal models can be delivered with 3-7days,
please contact us to check transport time to your address.

6.How to deliver?
We can send by Express, by Sea and by Air.

7.Is will be broken during transport?
Please do not worry, we do standard export package.

8.What should I do if I do not know how to use?
User manual will be sent together, you can also contact us with more technological support.
